性能参数

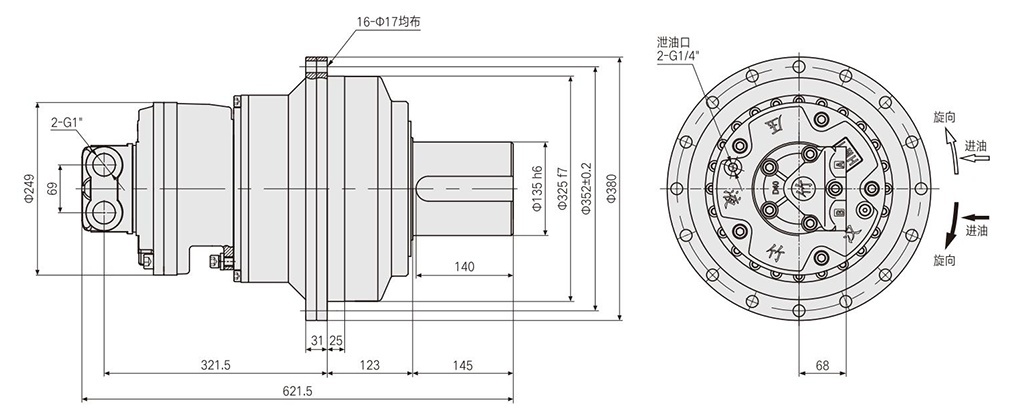

外形尺寸

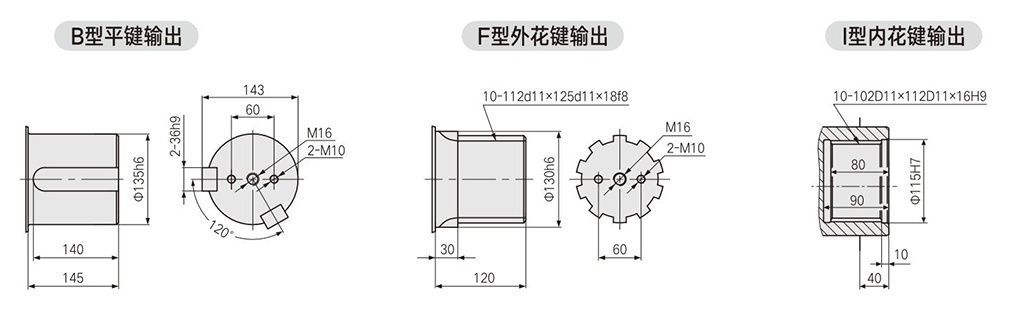

轴伸型式
其他
| 型号 Model | WK3 4-3500 | WK3 4-4000 | WK3 4-4900 | WK3 4-5800 | WK3 4-6800 | WK3 4-8100 |
| 总排量(ml/r) Displacement |
3440 | 4020 | 4860 | 5800 | 6804 | 8120 |
| 额定扭矩(N.m) Rated torque |
9433 | 11052 | 13376 | 15910 | 18725 | 22344 |
| 转速范围(r/min) Speed range |
0-18 | 0-18 | 0-18 | 0-18 | 0-12 | 0-12 |
| 额定压力(Mpa) Rated pressure |
20 | 20 | 20 | 20 | 20 | 20 |
| 液压马达型号 Hydraulic motor model |
HM1-175 | HM1-200 | HM1-250 | HM1-300 | HM1-250 | HM1-300 |
| 行星减速机型号 Planetary reducer model |
C3 4-20 | C3 4-20 | C3 4-20 | C3 4-20 | C3 4-28 | C3 4-28 |
