性能参数

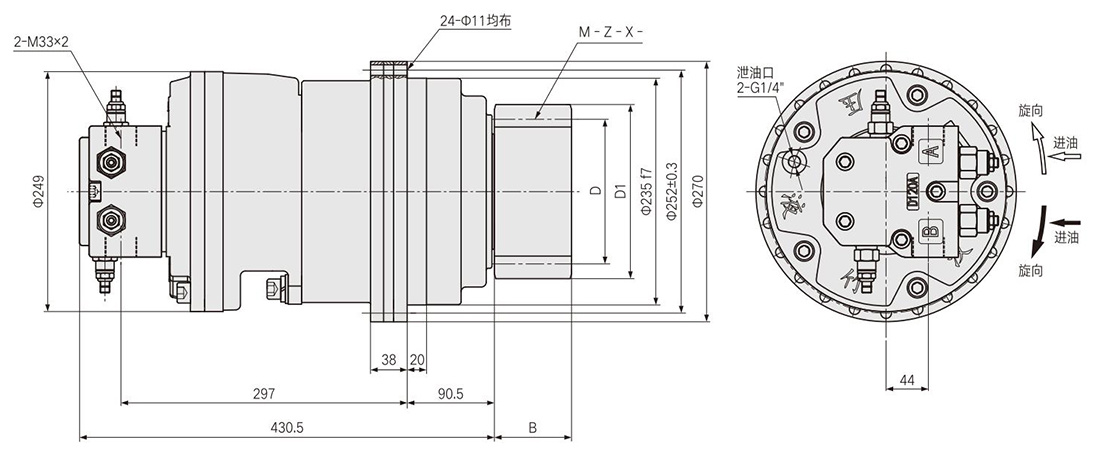

外形尺寸
齿轮参数
其他
| 型号 Model | WKH3-1250 | WKH3-1450 | WKH3-1600 | WKH3-1700 | WKH3-1900 |
| 总排量 (ml/r) Displacement |
1215 | 1450 | 1570 | 1727 | 1870 |
| 额定扭矩 (N.m) Rated torque |
4510 | 5365 | 5810 | 6400 | 6485 |
| 转速范围 (r/min) Speed range |
2-110 | 2-105 | 2-100 | 2-95 | 2-90 |
| 额定压力 (Mpa) Rated pressure |
25 | 25 | 25 | 25 | 23 |
| 液压马达型号 Hydraulic motor model |
HM1-250 | HM1-300 | HM1-320 | HM1-320 | HM1-350 |
| 行星减速机型号 Planetary reducer model |
C3-5 | C3-5 | C3-5 | C3-5.5 | C3-5.5 |
| 静制动扭矩 (N.m) Brake torque |
8000 | 8000 | 8000 | 8000 | 8000 |
| 静制器开启压力 (Mpa) Releasing pressure |
2 | 2 | 2 | 2 | 2 |
关键词：
HM径向柱塞液压马达
HZW径向柱塞液压马达
HW高功率液压马达
WK液压传动装置
WKY液压传动装置
WKH液压传动装置
XZ液压行走减速机
| 模数M Module |
齿数Z Number of teeth |
变位系数X Modification coefficient |
ΦD | ΦD1 | B |
| 6 | 17 | 0.5 | 102 | 118.8 | 60 |
| 8 | 15 | 0.5 | 120 | 143.24 | 60 |
| 8 | 17 | 0.3 | 136 | 156.8 | 90 |
| 8 | 17 | 0.5 | 136 | 159.04 | 65 |
| 10 | 12 | 0.63 | 120 | 149 | 80 |
| 10 | 15 | 0.7 | 150 | 180.44 | 100 |
| 10 | 18 | 0.7 | 180 | 212.7 | 88 |
| 12 | 14 | 0.35 | 168 | 199.53 | 100 |
| 12 | 15 | 0.63 | 180 | 216.39 | 90 |

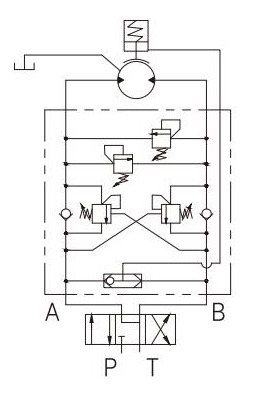

液压原理图
