性能参数

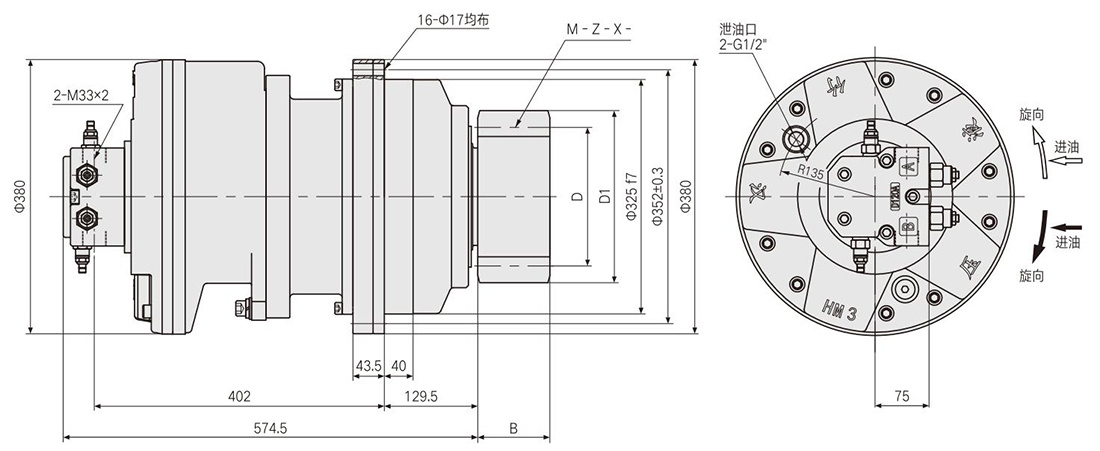

外形尺寸
齿轮参数
其他
| 型号 Model | WKH4-3000 | WKH4-3500 | WKH4-4000 | WKH4-4400 | WKH4-4800 | WKH4-5400 |
| 总排量 (ml/r) Displacement |
2975 | 3450 | 3960 | 4356 | 4801.5 | 5428.5 |
| 额定扭矩 (N.m) Rated torque |
11000 | 12800 | 14700 | 16190 | 17700 | 18500 |
| 转速范围 (r/min) Speed range |
2-80 | 2-80 | 2-80 | 1-75 | 1-70 | 1-65 |
| 额定压力 (Mpa) Rated pressure |
25 | 25 | 25 | 25 | 25 | 23 |
| 液压马达型号 Hydraulic motor model |
HM3-600 | HM3-700 | HM3-800 | HM3-800 | HM3-900 | HM3-100 |
| 行星减速机型号 Planetary reducer model |
C4-5 | C4-5 | C4-5 | C4-5.5 | C4-5.5 | C4-5.5 |
| 静制动扭矩 (N.m) Brake torque |
24000 | 24000 | 24000 | 24000 | 24000 | 24000 |
| 静制器开启压力 (Mpa) Releasing pressure |
2 | 2 | 2 | 2 | 2 | 2 |
关键词：
HM径向柱塞液压马达
HZW径向柱塞液压马达
HW高功率液压马达
WK液压传动装置
WKY液压传动装置
WKH液压传动装置
XZ液压行走减速机
| 模数M Module |
齿数Z Number of teeth |
变位系数X Modification coefficient |
ΦD | ΦD1 | B |
| 10 | 17 | 0.6 | 170 | 200.64 | 85 |
| 12 | 13 | 0.5 | 156 | 191.5 | 100 |
| 12 | 18 | 0.564 | 216 | 252.03 | 85 |
| 14 | 15 | 0.5 | 210 | 250.58 | 100 |
| 16 | 12 | 0.641 | 192 | 241.6 | 125 |
| 10 | 15 | 0.5 | 192 | 238.4 | 100 |

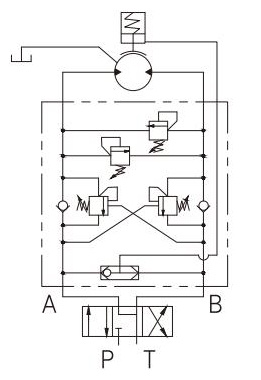

液压原理图
