性能参数

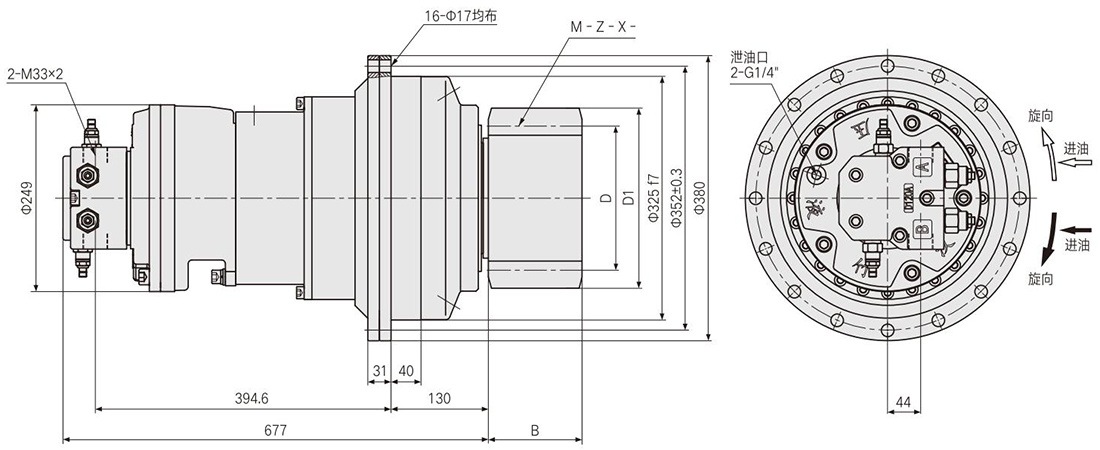

外形尺寸
齿轮参数
其他
| 型号 Model | WKH3 4-4800 | WKH3 4-5500 | WKH3 4-6800 | WKH3 4-8700 |
| 总排量 (ml/r) Displacement |
4816 | 5628 | 6804 | 8792 |
| 额定扭矩 (N.m) Rated torque |
11400 | 13360 | 16100 | 20000 |
| 转速范围 (r/min) Speed range |
0-12 | 0-12 | 0-12 | 0-12 |
| 额定压力 (Mpa) Rated pressure |
16 | 16 | 16 | 16 |
| 液压马达型号 Hydraulic motor model |
HM1-175 | HM1-200 | HM1-250 | HM1-320 |
| 行星减速机型号 Planetary reducer model |
C3 4-28 | C3 4-28 | C3 4-28 | C3 4-28 |
| 静制动扭矩 (N.m) Brake torque |
24000 | 24000 | 24000 | 24000 |
| 静制器开启压力 (Mpa) Releasing pressure |
2 | 2 | 2 | 2 |
关键词：
HM径向柱塞液压马达
HZW径向柱塞液压马达
HW高功率液压马达
WK液压传动装置
WKY液压传动装置
WKH液压传动装置
XZ液压行走减速机
| 模数M Module |
齿数Z Number of teeth |
变位系数X Modification coefficient |
ΦD | ΦD1 | B |
| 16 | 12 | 0.5 | 192 | 240 | 120 |
| 16 | 11 | 0.5 | 176 | 224 | 110 |
| 14 | 14 | 0.5 | 196 | 238 | 120 |
| 14 | 16 | 0.5 | 224 | 266 | 120 |

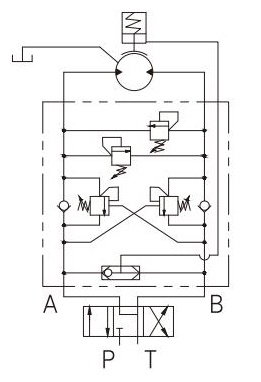

液压原理图
