性能参数

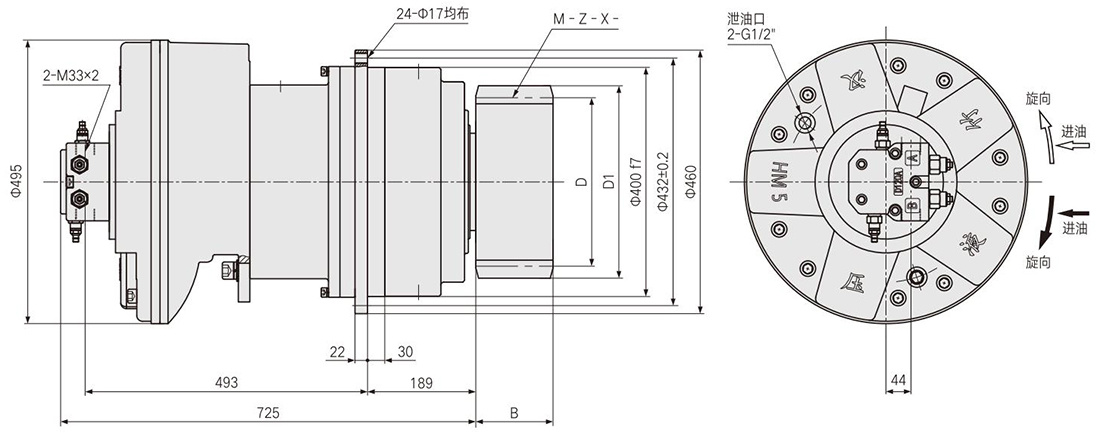

外形尺寸
齿轮参数
其他
| 型号 Model | WKH5-7300 | WKH5-8150 | WKH5-9000 | WKH5-10000 | WKH5-11000 |
| 总排量 (ml/r) Displacement |
7310 | 8170 | 9080 | 9988 | 11038.5 |
| 额定扭矩 (N.m) Rated torque |
27000 | 30100 | 33600 | 36900 | 37600 |
| 转速范围 (r/min) Speed range |
1-60 | 1-60 | 1-60 | 1-55 | 1-50 |
| 额定压力 (Mpa) Rated pressure |
25 | 25 | 25 | 25 | 23 |
| 液压马达型号 Hydraulic motor model |
HM5-1450 | HM5-1600 | HM5-1800 | HM5-1800 | HM5-2000 |
| 行星减速机型号 Planetary reducer model |
C5-5 | C5-5 | C5-5 | C5-5.5 | C5-5.5 |
| 静制动扭矩 (N.m) Brake torque |
40000 | 40000 | 40000 | 40000 | 40000 |
| 静制器开启压力 (Mpa) Releasing pressure |
2 | 2 | 2 | 2 | 2 |
关键词：
HM径向柱塞液压马达
HZW径向柱塞液压马达
HW高功率液压马达
WK液压传动装置
WKY液压传动装置
WKH液压传动装置
XZ液压行走减速机
| 模数M Module |
齿数Z Number of teeth |
变位系数X Modification coefficient |
ΦD | ΦD1 | B |
| 12 | 18 | 0.564 | 216 | 252.03 | 85 |
| 12 | 19 | 0 | 228 | 252 | 100 |
| 14 | 15 | 0.5 | 210 | 250.58 | 100 |
| 14 | 16 | 0.5 | 224 | 266 | 140 |
| 16 | 12 | 0.5 | 192 | 237.92 | 100 |

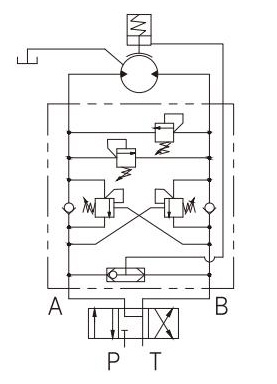

液压原理图
